Description
Optimized Cooling Performance
The APCF-56-70000 is a high-performance heat exchange solution designed to meet or exceed OEM standards. Built with a 350mm x 203mm core, it provides a large surface area for heat dissipation, reducing the temperature of compressed air from the turbocharger before it enters the engine.
Durable Construction & Precision Fit
-
Core Material: High-grade aluminum for superior thermal conductivity.
-
Tank Design: Heavy-duty Plastic-Aluminum (PA) construction for a perfect balance of weight and pressure resistance.
-
Technical Details: Includes an M6 copper blind insert and a ø15 through-hole for secure mounting and sensor integration.
-
Direct Replacement: Engineered for a seamless fit in the Hyundai Custo 2021 series, ensuring no modifications are required during installation.
Technical Specifications
| Feature | Specification |
| Manufacturer Part Number | APCF-56-70000 |
| OEM Reference | 28270-2JTB0 |
| Compatibility | Hyundai Custo (2021-) |
| Core Size | 350 x 203 mm |
| Thickness (PA) | 84 mm |
| Tank Dimensions | 100/100 x 205 mm |
| Carton Dimensions | 590 x 215 x 250 mm |
| Construction Type | Plastic-Aluminum (PA) |

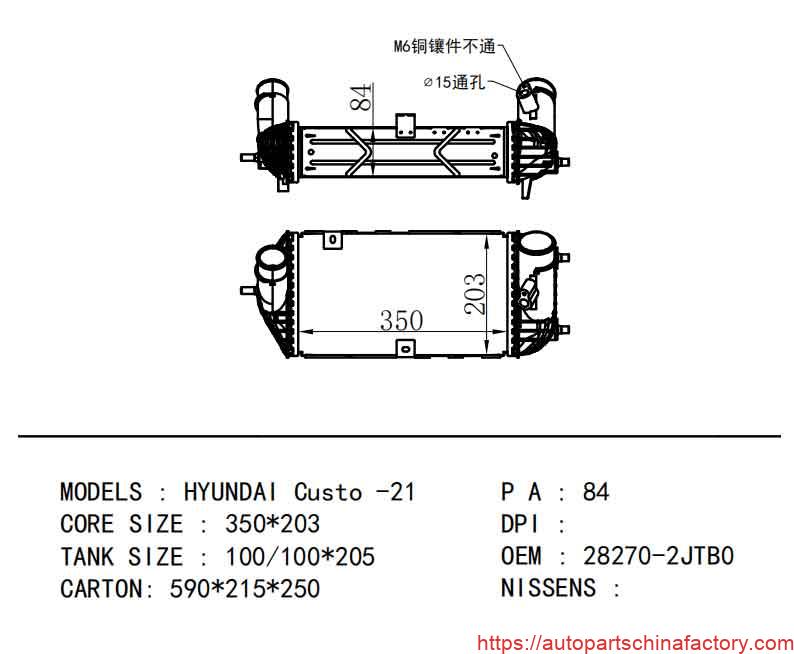

Product Part Reference
Products Structure Details
Production Process & Test
Production Process from Tube
Production Process with Test
Popular Package Inside Box
package
Shippment Loading
Loading Shippment
