8-Row Heavy-Duty Transmission Oil Cooler Kit for Land Rover | Cross-Ref: MAHLE BEHR OSA014-8-BA

Protect your vehicle’s drivetrain with the APCF-52357 8-Row Auxiliary Oil Cooler Kit. Specifically engineered for heavy-duty thermal management and cross-referenced with MAHLE BEHR OSA014-8-BA for Land Rover platforms, this complete kit features an expansion-type tube & fin core to rapidly lower transmission and engine oil temperatures. Comes complete with a high-pressure fluid hose, mounting straps, foam dampening pads, and premium worm-gear clamps for an immediate, reliable installation.

Description

High-Efficiency Drivetrain Protection

The APCF-52357 is an industrial-grade, 8-row expansion-tube oil cooler designed to prevent automatic transmission fluid (ATF) and engine oil breakdown. By adding this auxiliary cooling loop, you can significantly lower operating temperatures during high-stress conditions such as towing, off-roading, or stop-and-go heavy transit.

Complete All-In-One Installation Kit

Unlike bare cores, this product is delivered as a comprehensive installation package to streamline workshop turnaround times:

Premium 8-Row Core: Coated in a durable black anti-corrosion finish.
High-Pressure Rubber Hose: Engineered to withstand high temperatures and oil degradation.
Mounting Kit: Includes heavy-duty zip-straps, cushioned foam backing pads, and an iron connector fitting.
Secure Hardware: Four stainless-steel worm-gear clamps to ensure a completely leak-free seal.

Technical Specifications

Manufactured to strict OEM tolerances, this expansion tube-and-fin heat exchanger guarantees an exact dimensional fit:

+--------------------------------------------------------------------------+
|                       TECHNICAL PERFORMANCE METRICS                      |
+--------------------------+-----------------------------------------------+
| Parameter                | Measurement & Material Specification          |
+--------------------------+-----------------------------------------------+
| Grid Configuration       | 8-Row Horizontal Pass                         |
| Core Dimensions          | 254 mm x 19 mm x 303 mm                       |
| Core Thickness           | 19 mm                                         |
| Core Material            | High-Grade 3003 Aluminum Alloy                |
| Core Pressure Resistance | 130 kg/cm² (127 Bar / 1,850 PSI)               |
| Hose Material Structure  | Dual-Layer Technology (Inner: NBR / Outer: CSM)|
| Hose Pressure Resistance | 70 - 80 kg/cm² (68 - 78 Bar / 1,000 - 1,140 PSI)|
| Primary Cross-Reference  | MAHLE BEHR OSA014-8-BA                        |
| Application Segment      | Land Rover / Universal Auxiliary Duty         |
+--------------------------+-----------------------------------------------+

All-In-One Workshop Installation Package with High-Spec Fluid Lines

Feature	Specification
Factory Product Code	APCF-52357
OEM / Cross-Reference	MAHLE BEHR OSA014-8-BA
Primary Vehicle Application	Land Rover
Cooler Core Design	Expansion / Mechanical Tube & Fin (胀管式油散)
Number of Cooling Rows	8 Rows
Core Dimensions	$254 \times 19 \times 303$ mm
Core Thickness	19 mm
Finish	Matte Black Weatherproof Coating

Product Part Reference

Products Structure Details

Production Process & Test

Production Process from Tube

Production Process with Test

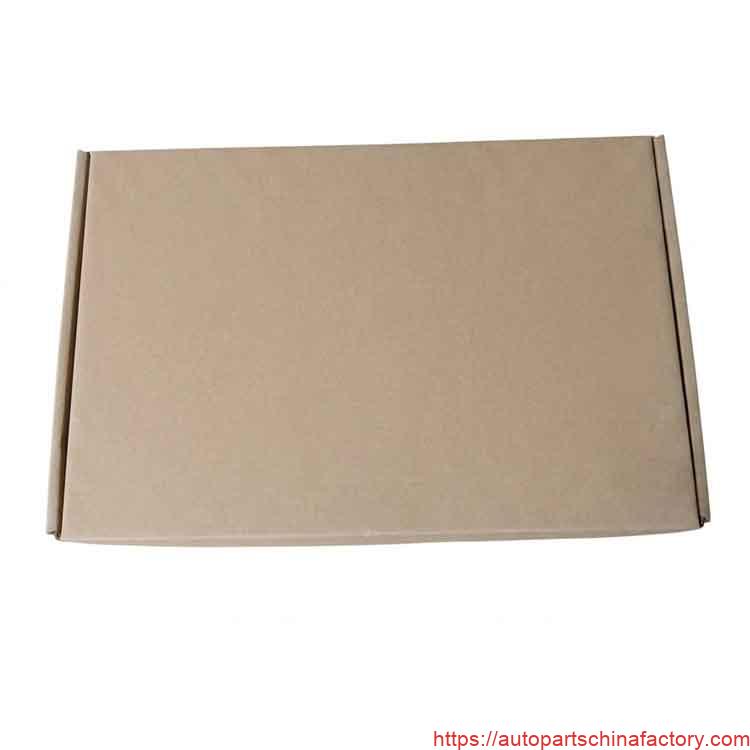

Popular Package Inside Box

package

Shippment Loading

Loading Shippment
